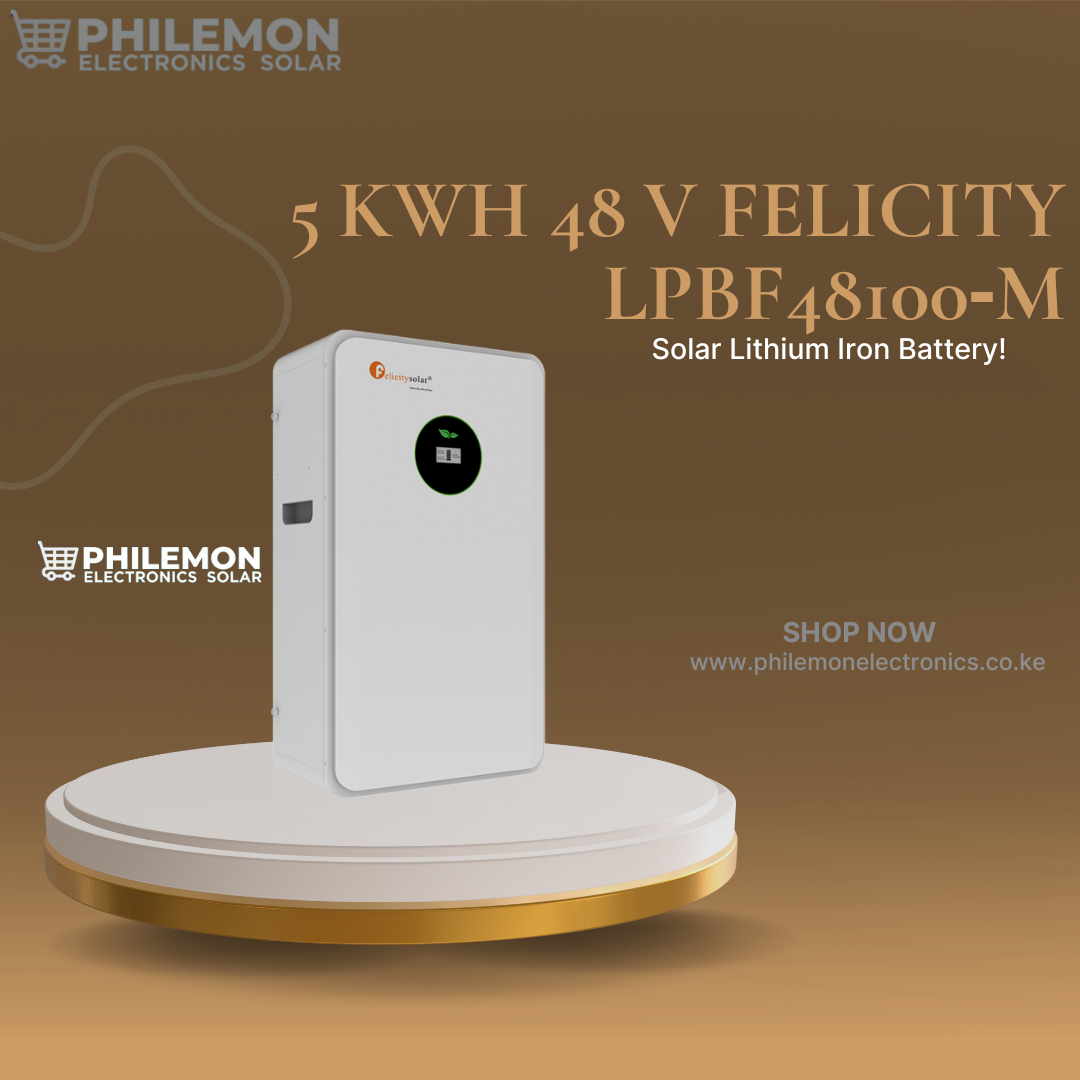

5 kWh 48 V FELICITY LPBF48100‑M Solar Lithium Iron Battery – 100 Ah LiFePO₄ with Smart BMS
Elevate your solar system’s storage capacity with the bold FELICITY LPBF48100‑M, a premium 48 V, 100 Ah LiFePO₄ battery delivering 5 kWh usable capacity. Designed for household and off-grid energy needs, this compact powerhouse offers safety, durability, and easy expandability. 🔋🌞
✅ Key Features & Benefits 🌟
🔹 5.0 kWh usable energy (100 Ah @ 51.2 V) – ideal for backup or daily cycling
🔹 Nominal voltage ~51.2 V (range 48–57.6 V) with recommended charge/discharge cut‑offs of 57.6 V and 48 V respectively Scribd+12felicitysolarsa.co.za+12Alibaba+12
🔹 Safe LiFePO₄ chemistry with integrated Smart BMS for over-current, over-voltage, and temperature protection felicitysolarsa.co.zaactive-techs.com
🔹 Fast discharge capability: up to 100 A for 30 s, recommended continuous ≤50 A sun4safe.com+2felicitysolarsa.co.za+2active-techs.com+2
🔹 Max output power: 5,000 W, recommended continuous 2,500 W starzelectric.com+4felicitysolarsa.co.za+4Vital Solutions+4
🔹 Depth of Discharge (DoD): ≥95%, giving full use of stored energy Scribd+6felicitysolarsa.co.za+6sun4safe.com+6
🔹 Cycle life: ≥6,000 cycles at 80% DoD @25 °C for long-term reliability Scribd+8felicitysolarsa.co.za+8sun4safe.com+8
🔹 Parallel connectivity: up to 6 units for scalable capacity Vital Solutions+5ENF Solar+5active-techs.com+5
🔹 Communication via CAN & RS485 for remote monitoring and integration Alibaba+7felicitysolarsa.co.za+7starzelectric.com+7
🔹 Compact wall-mount design, IP21-rated enclosure, ~40 kg net weight, dimensions ~630×540×260 mm solarwaysuppliers.co.za+3felicitysolarsa.co.za+3Vital Solutions+3
🔹 5-year warranty available from authorized dealers felicitysolarsa.co.zasun4safe.com
🏡 Ideal Application Areas
Home solar storage and UPS 🔌
Off-grid or rural electrification systems 🌄
Small-scale commercial sites: clinics, shops, telecom base stations 🚨
Expandable systems—grow capacity as needed
Hybrid solar systems paired with Felicity inverters
⚡ Performance & Usable Load Table
Using 5 kWh usable energy and 80–95% DoD:
| Load / Devices | Power (W) | Estimated Runtime (hrs) | Notes |
|---|---|---|---|
| LED Lighting (10×15 W) | 150 | ~33 | Low evening lighting use |
| Ceiling Fans (4×80 W) + Lighting | ~320 | ~15 | Typical household load |
| Fridge (average cycle) | ~400 | ~10 | Intermittent compressor use |
| Laptop + Router + TV | ~300 | ~17 | Moderate continuous usage |
| Combined Evening Load (~900 W) | ~900 | ~5.5–6 | Household evening peak |
Estimates based on usable energy and typical inverter efficiency.
🛠 Maintenance Tips for Longevity
✅ Check and clean terminals quarterly to prevent corrosion
✅ Install in dry, ventilated indoor location away from heat and moisture
✅ Use CAN/RS485 interface for monitoring battery health and firmware updates
✅ Avoid full discharge—stay within recommended DoD for longer life
🔧 DIY Installation & Operation Guide
Mount vertically on wall or rack with space for airflow around the vents.
Connect to a compatible 48 V inverter or charge controller using appropriate cable gauge.
For parallel setup (up to 6 units): wire units in identical order and sequence.
Power up and verify BMS status via monitoring or display.
Run a test cycle to confirm charging and discharging behavior under load.
⚠️ Do’s & Don’ts
✅ Do’s:
Pair with compatible 48 V inverters/UPS systems
Parallel only with identical models and wiring
Keep depth-of-discharge within safe limits (≤95%)
Monitor regularly for voltage & temperature alerts
❌ Don’ts:
Do not expose to rain, humidity, or high heat
Never exceed max continuous current
Avoid mixing units of different age or capacity
Do not attempt internal maintenance—refer to qualified technicians
❓ Frequently Asked Questions (FAQs)
Q1: Can I connect multiple units together?
A: Yes—up to 6 units can be connected in parallel for higher capacity. Vital Solutionssun4safe.com+5felicitysolar.com+5Vital Solutions+5KWT Tech MartKWT Tech Mart+4felicitysolarsa.co.za+4active-techs.com+4solarwaysuppliers.co.za
Q2: What is the lifespan of this battery?
A: With ≥6,000 cycles at 80% DoD, it offers exceptional longevity—typically over 10 years. felicitysolarsa.co.zaactive-techs.com
Q3: How much load can it support continuously?
A: Supports up to ~2,500 W continuous; peaks to 5,000 W for short durations. felicitysolarsa.co.zaactive-techs.com
Q4: Does it include monitoring?
A: Built-in CAN & RS485 ports enable integration with monitoring systems or compatible inverters. felicitysolarsa.co.zaENF Solar
Q5: Battery warranty period?
A: Typically covered for 5 years by authorised sellers. felicitysolarsa.co.zasun4safe.com
💼 Why Choose PHILEMON ELECTRONICS?
✅ Official authorized distributor of Felicity Solar in Kenya
✅ Full technical support and installation services
✅ Competitive pricing bundled with warranty
✅ Nationwide delivery and after-sales care
📍 Available at Macire Limited, Barkat Biashara Mall, Kumasi Road – Opp. Simba Coach
📞 Call/WhatsApp: +254 727387191
🌐 Visit: www.philemonelectronics.co.ke
🔋 Felicity LPBF48100‑M 48 V 100 Ah LiFePO₄ Battery – 5 kWh usable capacity with smart BMS
🔄 Supports up to 6 units in parallel for bigger systems
⚡ Delivers up to 5,000 W peak, 2,500 W recommended continuous
🛡 Built to last with ≥6,000 cycles @80% DoD and multiple protections
🔗 CAN & RS485 interfaces for smart monitoring
